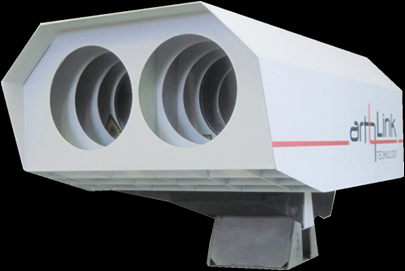

Stationary Terminals
Our stationary terminals provides best solutions for:
Outdoor wireless access;
Storage Area Networks;
Last-mile access;
Enterprise connectivity;
Fiber backup;
Metro-network extensions;
Service accelerations;
Point-to-point links;
WAN access bridging
http://www.moctkom.ru/optical-ground-stations/
M1-GE-L | M1-10GE | M1-20GE | M1-30GE | |
Throughput | 1 Gbps | 10 Gbps | 20 Gbps | 30 Gbps |
Max.distance | 4400 m | 1500 m | 1500 m | 1500 m |
Transmission delay | 5 us | 5 us | 5 us | 5 us |
User Interfaces | 2 ports RJ-45, SFP port | 1 port 10G SFP+ | 2 ports 10G SFP+ | 3 ports 10G SFP+ |
Channel type | standard IEEE 802.3 az | Transparent, protocol independent | Transparent, protocol independent | Transparent, protocol independent |
MTU, bytes | – | >16000 | >16000 | >16000 |
Power supply | AC 100-240; 50-60 Hz, DC 48±12V | AC 100-240; 50-60 Hz, DC 48±12V | AC 100-240; 50-60 Hz, DC 48±12V | AC 100-240; 50-60 Hz, DC 48±12V |
Power consumption | 46 W | 46 W | 48 W | 49 W |
Dimensions | 480x285x300 mm | 480x285x300 mm | 480x285x300 mm | 480x285x300 mm |
Weight | 9,4 kg | 9,4 kg | 9,4 kg | 9,4 kg |
