New PIV Product - 150W total output at 532nm

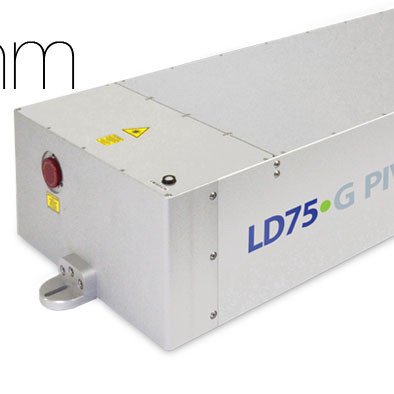

LD75-G PIV - High repetition rate DPSS Nd:YAG dual head laser for time resolved PIV applications.

• 7.5mJ at 10kHz
• 9mJ at 6kHz
• Repetition rates of 50kHz with individual pulses

The LD75-G PIV is a dual laser head system ideal for PIV applications.
The system comprises two fully independent intracavity doubled Nd:YAG lasers, each giving outputs of 75W at 532nm, that are combined to a common beam axis. Both lasers are independently triggerable and controllable. The Invar rail around which the system is constructed imparts exceptional stability and the sealed head enclosure ensures continuous reliable operation in non-ideal environments. The power supplies and chiller are fully integrated in a single unit. With no services except the mains electrical input the LD75-G PIV is a stand-alone turnkey system with an output suited to many time resolved PIV applications.


Key Fetures

Two independent 532nm laser heads each giving
• 7.5mJ at 10kHz
• 9mJ at 6kHz
• Repetition rates of 50kHz with individual pulses
•<0.2% RMS stability
• Fully independent operation and timing
• Circular homogenous profile
• Optimised for high brightness light-sheets

System benefits include

• 150W total output at 532nm at 20kHz or 10kHz
• Industrially stable Invar rail
• Fully integrated power supply and chiller
• LUCi touchscreen controller
• RS232 interface with GUI software included
• Ruggedised laser head for harsh environments
• Worldwide warranty and service

Applications

• PIV
• Particle Sizing
• Ti:S Pumping
• Combustion Analysis
• Laser Induced Fluorescence
• LIDAR
• Spectroscopy

Click here for the LD75-G PIV data sheet.

Or for further information on this new product please contact Litron directly.
