Dr. Mergenthaler fiber-coupled, high-brightness diode laser systems are the turn-key solution for easy integration into your machines or systems. Together with a processing head and the laser process controller LASCON®, they form a complete industrial processing system.

With more than 20 years of experience in laser technologie, we offer support for your application and consulting on your process. Please feel free to call ( +49 731 15979040 ) or contact us to learn more about how your customised solution can be achieved.

Typical applications of the diode laser system include laser plastic welding, laser soldering, laser heating, pre-heating in thermocompression and wafer bonding and other heat treatment processes.

One technology – laser power from 25W to 350W
Wavelength 808nm, 940nm , 980nm
Fiber diameter 100µm - 600µm
Analog interface 0-10 V
Time constant 0.3 ms
Safety technology – monitored startup, internal/external emergency Off, remote startup
Ready to be connected to LASCON® controllers and LH101 and LH501 laser heads

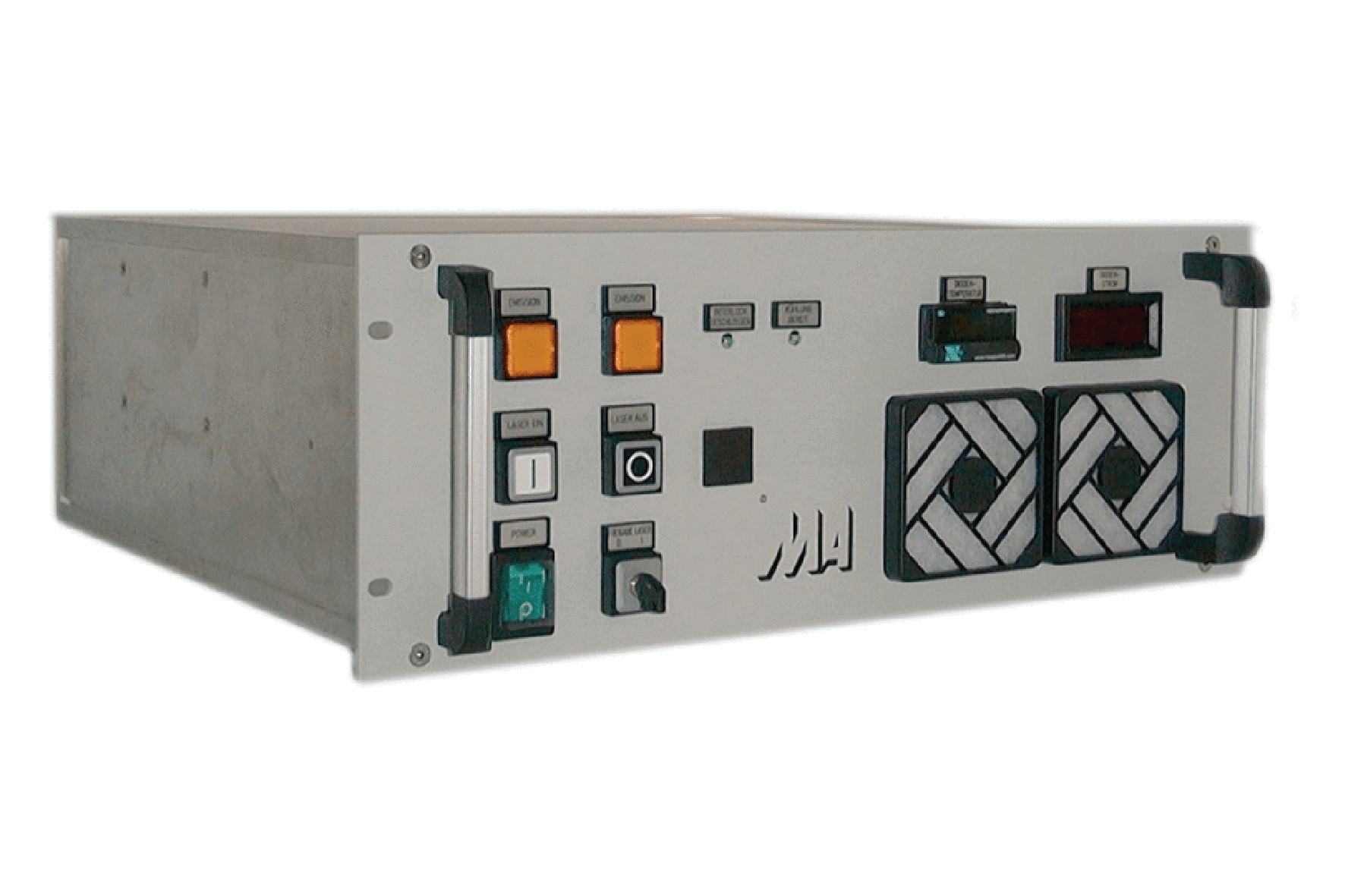

Enclosed in industrial housing 19“ - 4HU
All the lasers can be equipped with a visible pilot light beam

Please check also LASCON® Hybrid a unique combination of high power fiber coupled diode laser system with laser power up to 60W in a 200µm ( 100µm ) fiber and laser process controller LASCON® - all in one box, ready to start production.

The products being presented here are subjected to the regulations of laser class 4 products. The laser may only be operated in environments, which comply with the
