min

typ

max

　DFB-LD light source

　DFBLD-1310-8

1310 +/-20

5

8

15

0.02

0.1

　DFBLD-1550-8

1550 +/-20

5

8

15

1/50,000 (2MHz)

0.1

　DFBLD-1550-16

1550 +/-20

10

16

20

1/10,000 (10MHz)

0.1

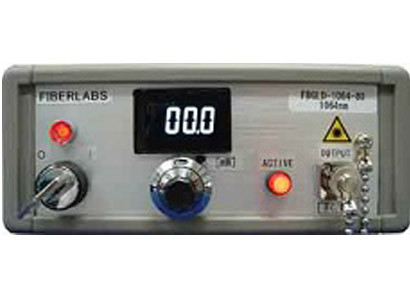

　FBG-stabilized LD light source

　FBGLD-975-200

975 +/-5

150

200

250

1

< 0.02

　FBGLD-980-600

980 +/-5

550

600

650

1

< 0.02

　FBGLD-1030-200

1030 +/-10

150

200

250

-

-

　FBGLD-1060-400

1060 +/-10

380

400

450

-

-

　FBGLD-1425-150

1425 +/-5

130

150

200

3

< 0.02

　FBGLD-1440-150

1440 +/-5

130

150

200

3

< 0.02

　FBGLD-1455-150

1455 +/-5

130

150

200

3

< 0.02

　FBGLD-1465-150

1465 +/-5

130

150

200

3

< 0.02

　FBGLD-1470-150

1470 +/-5

130

150

200

3

< 0.02

　FBGLD-1490-150

1550 +/-5

130

150

200

3

< 0.02

　FP-LD light source

　FPLD-1310-1.5

1310 +/-20

1

1.5

3

4

0.5

　FPLD-1310-10

1310 +/-20

7

10

12

6

0.5

　FPLD-1440-200

1440 +/-20

150

200

250

10

0.5

　FPLD-1490-150

1490 +/-20

130

150

180

10

0.5

　FPLD-1550-1.5

1550 +/-25

1

1.5

3

5

0.5

　FPLD-1550-10

1550 +/-25

8

10

15

6

0.5

　FPLD-1550-100

1550 +/-20

90

100

120

6

0.5

　Common Specifications

　Size (BT type)

66 mm (H) x 160mm (W) x 230   mm (D)

　Operating temperature

0 ~ 4 0 ℃

　Storage tmperature

-10 ~ 6 0 ℃

　Power supply

AC100 ~ 240 V

　Output fiber

SMF

　Optical connector

FC/PC

　Options

　Option 011

FC/PC optical connector

　Option 012

FC/APC optical connector

　Option 013

SC/PC optical connector

　Option 014

SC/APC optical connector

　Option 141

Output power control,

　Option 142

Pulse modulation (1 ~ 1KHz),

Item

Wavelength (nm)

Output power (mW)

Case size W x H x D(mm)

　　VLM-B-06

405

≥6

A:33 x 31 x 100

　　VLM-G-05

532

≥5

B:63 x 31 x 100

　　VLM-R-04

638

≥4

A:33 x 31 x 100

　 Common Specifications

　　Pig tail length

500mm

　　Output fiber

SMF

　　Optical connector

FC

　　Opreration temperature

0 ~ 30°C

　　Stock temperature

-20 ~ 70°C

　　Power supply interface

AC adaptor jack

　　Power supply

DC 5V (Attached AC adaptor)
