調變器偏壓控制器 Modulator Bias Controllers

線上咨詢

回產品列表

產品介紹

Photline Modulator Bias Controllers (MBC) are designed to compensate the inherent drift of Mach-Zehnder modulators due to aging and environmental variations. The MBC lock the operating point of the intensity modulators so as to keep systems and lab set-ups at their top level performance.

Download Introduction to Photline MBC

Product Name	Main Specifications	Other Specs	Options

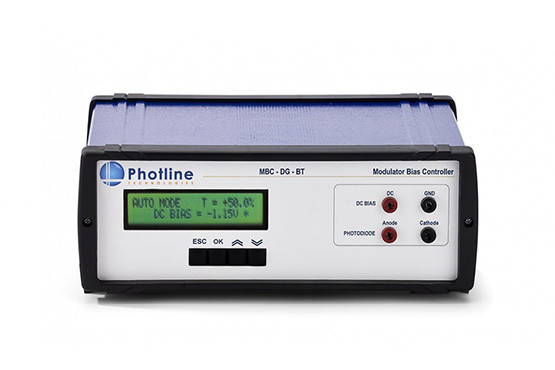

MBC-DG-BT	Bench-top Modulator Bias Controller for digital and pulse applications.	Continuous tuning of the operating point Front panel + USB remote control Extended wavelength range	OPT-PD/TAP : tap coupler with photodiode available for 800 nm, 1000 nm, 1310 nm, 1550 nm, 2 μm
MBC-AN-BT	Bench-top Modulator Bias Controller for analog applications	Dither-free operation Quadrature operating point USB remote control Extended wavelength range	OPT-PD/TAP tap coupler with photodiode available for 800 nm, 1000 nm, 1310 nm, 1550 nm, 2 μm
MBC-DG-board	Bias Controller for digital and pulse applications, OEM board type	Continuous tuning of the operating point USB remote control Extended wavelength range	OPT-PD/TAP tap coupler with photodiode available for 800 nm, 1000 nm, 1310 nm, 1550 nm, 2 μm
MBC-AN-board	Bench-top Modulator Bias Controller for analog applications	Quadrature operating point Dither-free Operation USB remote control Extended wavelength range	OPT-PD/TAP tap coupler with photodiode available for 800 nm, 1000 nm, 1310 nm, 1550 nm, 2 μm

調變器偏壓控制器 Modulator Bias Controllers

Download Introduction to Photline MBC
